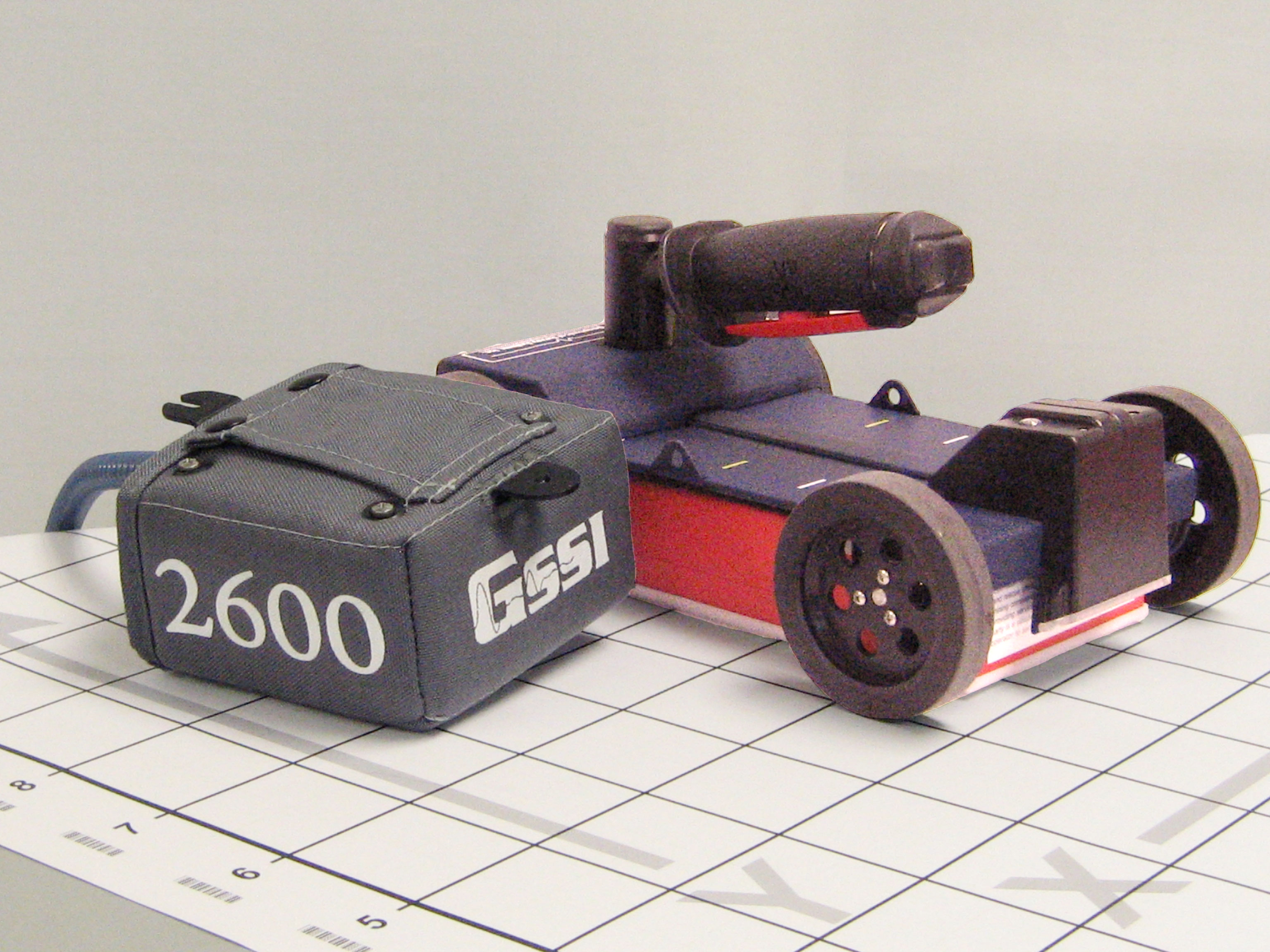

GSSI 2600 MHz – High Resolution Antenna

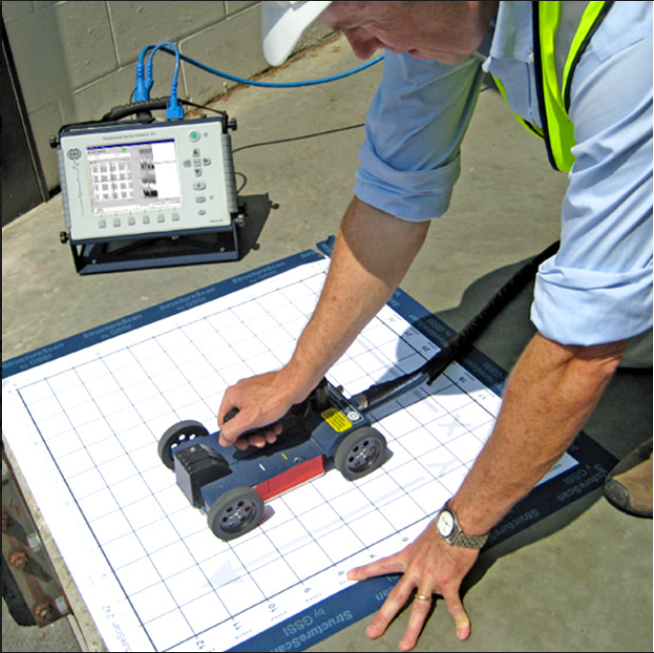

The GSSI 2600 MHz antenna is an ultra-high resolution antenna used to inspect concrete structures and to locate embedded rebar, post tension cables and conduits. This antenna is compatible with the SIR-4000 and SIR-30 control units.
The Model 52600S is a 2600 MHz “smart” antenna. This antenna has a special chip in it that will work with the SIR-30 and SIR-4000 (not the SIR-3000). This chip will identify the antenna to the SIR-system control unit so that the controller will be able to automatically load up the correct default settings. The 52600S will function with a SIR-3000, SIR-20 or any of GSSI’s previous controllers, but the user will need to manually set the collection parameters on the SIR-system. Collection parameters are listed below.
|Center Frequency||2600 MHz|
|Depth Range||0-40 cm (0-12 in)|
|Weight||1.8 kg (4 lbs.)|
|Dimensions||3.8x10x16.5 cm (1.5x4x6.5 in)|
