Description

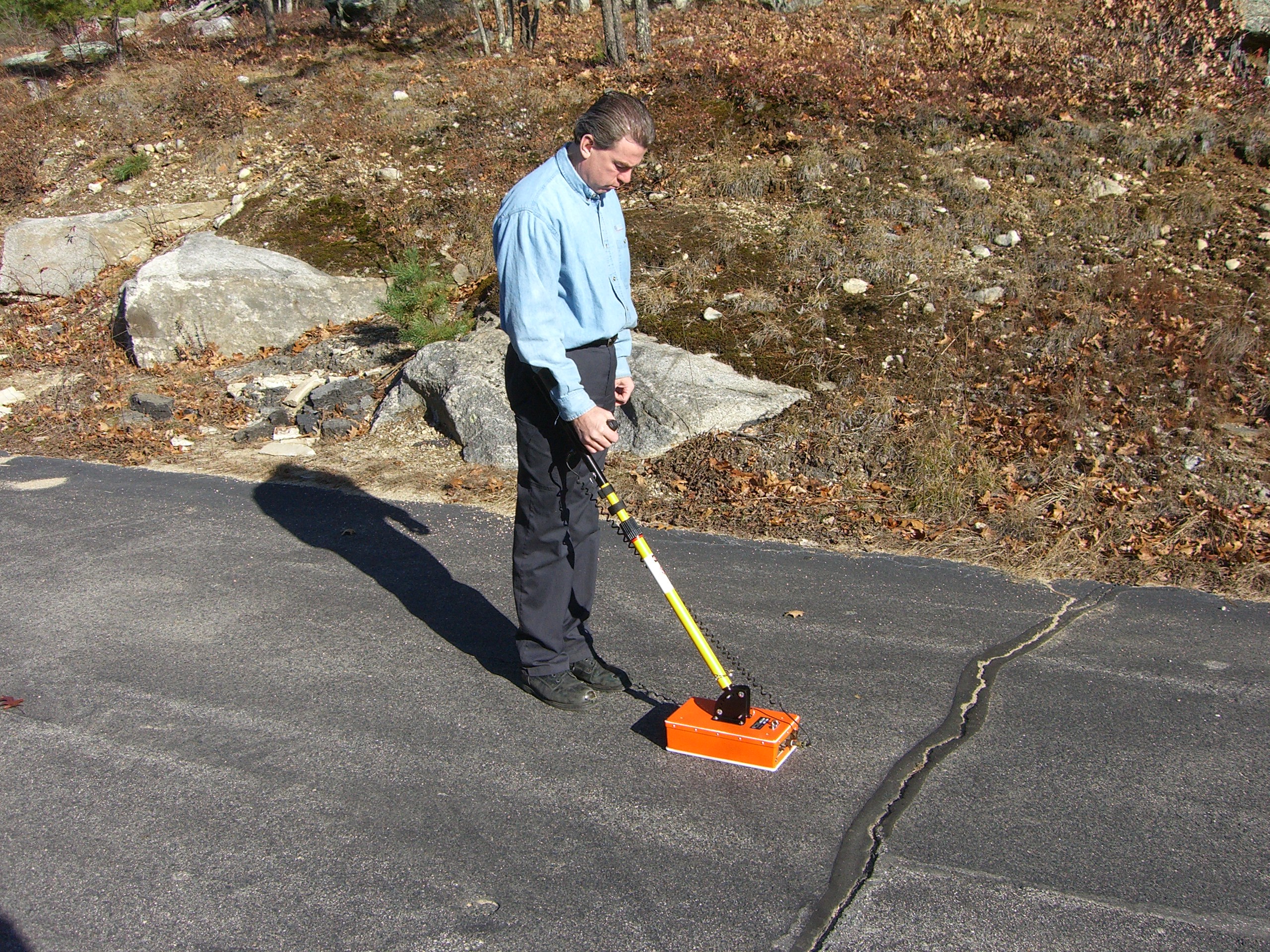

The 900 MHz (Shielded) antenna is designed for applications requiring shallow penetration down to 1 m (3 ft), including void detection, concrete thickness assessment and shallow pipe location. It can also be used for location of rebar where space is not limited. This antenna is compatible with all GSSI control units.
Specifications
Center Frequency | 900 MHz |
Depth Range | 0-1 m (0-3 ft) |
Weight | 2.3 kg (5 lbs) |
Dimensions | 33x18x8 cm (13x7x3 in) |
Model | 3101A |
Accessories
Model 611 Survey Wheel
To attach the 611, simply undo the four screws holding the antenna’s tow handle bracket and sandwich that 611 bracket plate between the antenna and the tow handle bracket. Replace the four screws to secure
Model 62X Survey Cart
The 3101 can be placed in the white plastic antenna holder of the 62X cart for use on rougher terrain or for large area surveys
Model 65X Survey Cart
The 900 MHz antenna can also be used in the smaller 4-wheeled utility cart. GSSI supplies a foam insert to keep the antenna stabilised in the cart capsule.
