Description

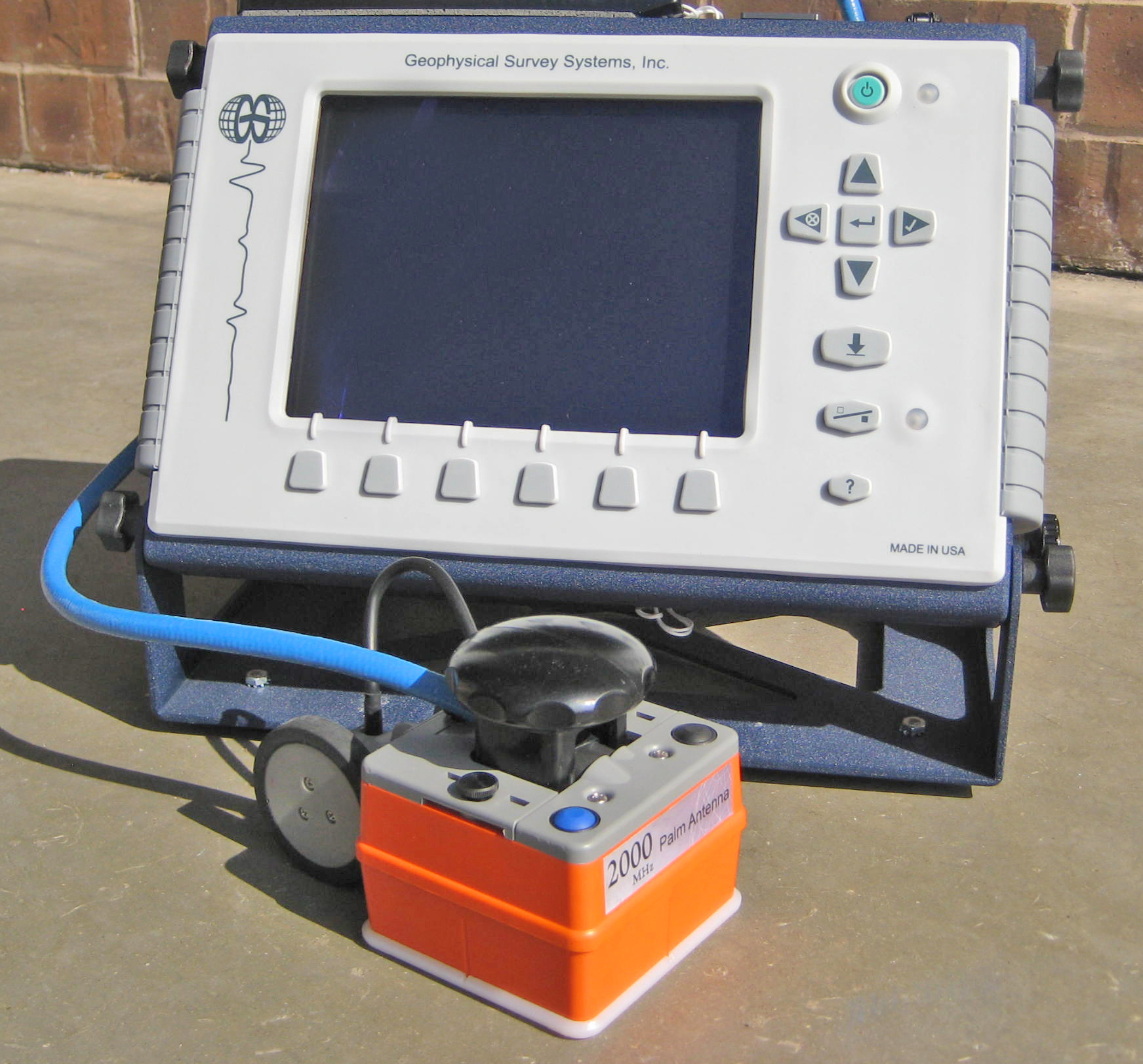

GSSI 2000 MHz – Palm Antenna
The Palm Antenna offers users the ability to reach tightly spaced areas that were previously inaccessible such as corners, against walls and around obstructions. The antenna includes a dedicated survey wheel, a replaceable skid plate, and removable handle to reduce antenna height, if necessary. The Palm Antenna is compatible with the SIR 4000 and SIR 30 control units.
The Palm Antenna combines exceptionally fine resolution in a small package. Its small size will help the concrete scanning professional to get into areas which are too tight for conventional antennas. The Palm antenna incorporates an integrated survey wheel which can change position and allow you to use the antenna in a cross-polarized configuration to aid in the detection of non-metallic objects. The Palm antenna also comes with an integrated control cable with a length of 7 m (22.75 feet). There is also an antenna safety attachment point 1.5 m (5 feet) from the antenna.
Specifications
| Center Frequency | 2000 MHz |
| Depth Range | 0-40 cm (0-12 in) |
| Antenna and Cable Weight | 3 m (10 ft) cable – 1.3 kg (3 lbs) 7 m cable (22.75 ft) – 1.8 kg (4 lbs) |
| Dimensions (Antenna only) | 10.4.×9.2×15.5 cm (4.1×3.6×6 in) |
| Model 62000-003 | 3 m & 7m cable |
Antenna Manual
