Description
Entry Level GPR System for Concrete Inspection

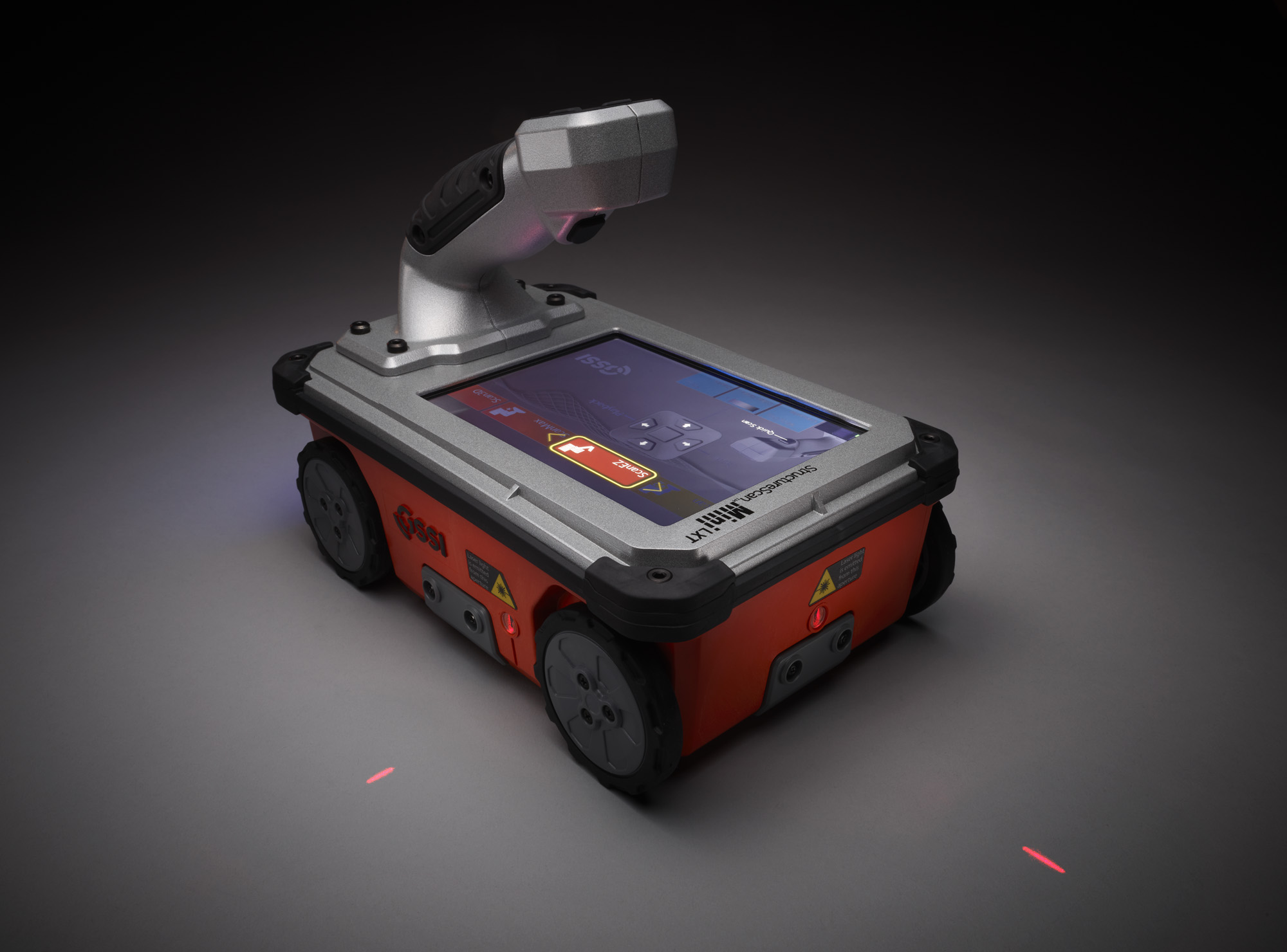

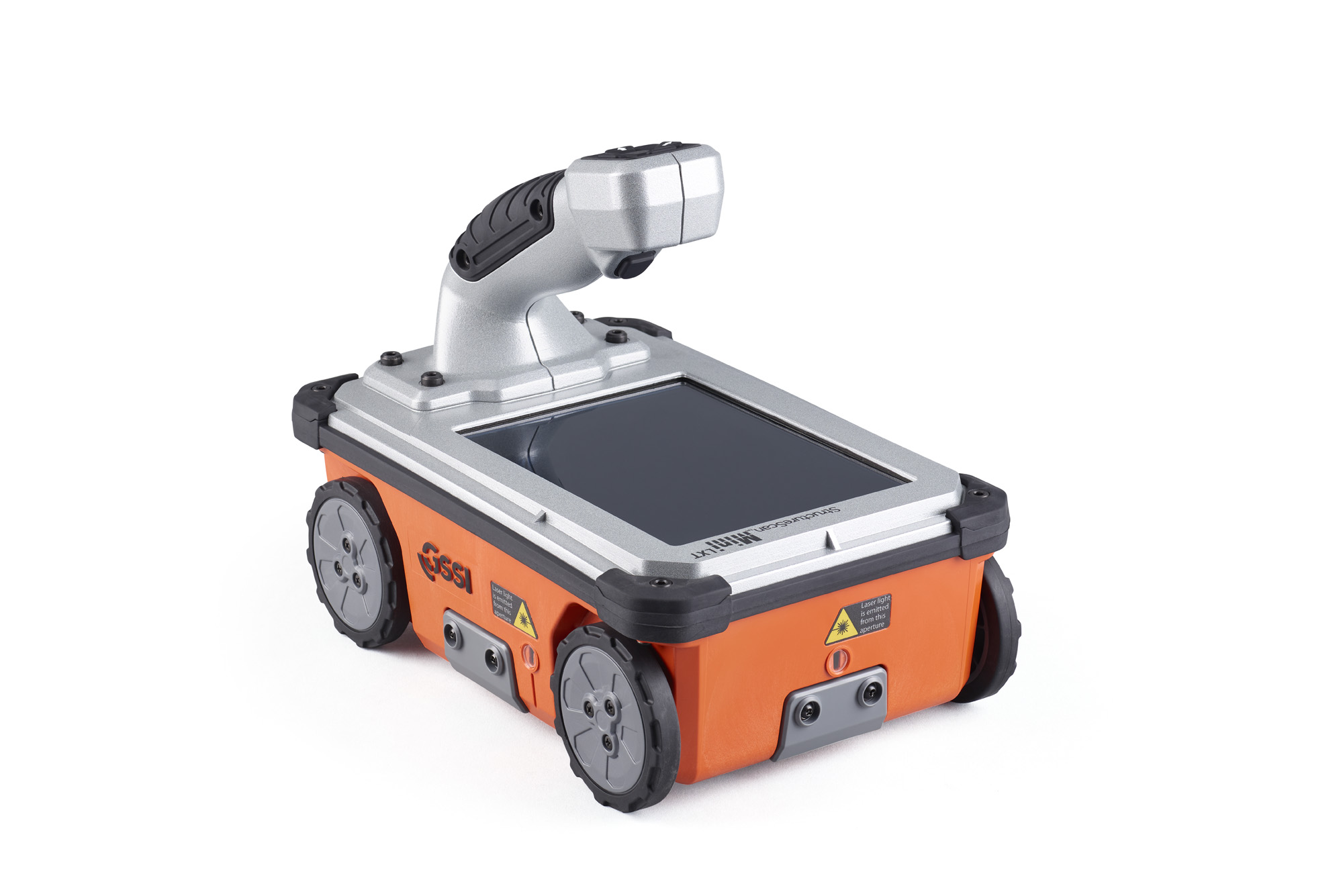

The StructureScan™ Mini LXT is designed and built for the concrete contractor who needs to locate and mark targets. This rugged, handheld system is ideal for locating the position and depth of metallic and non-metallic objects in concrete structures, including rebar, conduit, post-tension cables, voids and service utilities. The Mini LXT helps to reduce safety risks, financial exposure, and costly delays in concrete renovations.
| Max Depth | 60 cm (24 in) |
| Antenna Frequency | 2700 MHz |
| Weight | 1.8 kg (4 lbs) |
| Storage Capacity | 14.5 GB |
| Optional Software | RADAN 7 for StructureScan Mini |
| Accessories | Extension Pole |
Premium features, entry-level price
The StructureScan Mini LXT is the perfect blend of performance and price.
Typical Uses
The StructureScan Mini LXT is typically used to:
- Find rebar, post tension, conduits, and non-metallic objects
- Measure slab thickness
- Concrete scanning and imaging
- Condition assessment
- Structure inspection
Enhanced Data Visualization

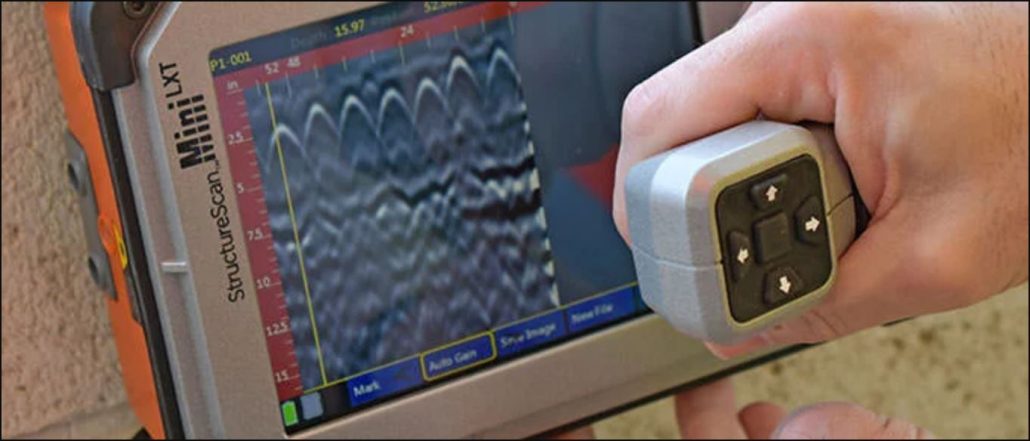

Get first-in-class data visualization with a 6.5 inch HD touchscreen user interface and multiple operation modes including QuickScan for real-time locating at the push of a button, and 3D mode for x-ray like images of the concrete.
Safety & Ergonomics
The StructureScan Mini LXT is compact and lightweight, weighing only 1.8 kg (4 lbs), making it easy to use on the ground or above-the-head on your job site. For large survey areas, add the optional extension pole for better ergonomics and ease of use.
The Mini LXT allows the user to collect data with one-hand operation ensuring that while scanning on walls and ceilings with ladders or lifts, you maintain 3 points of contact to comply with OSHA regulations.
Data Examples
High Resolution Antenna
This Data shows multi layer in an elevated slab. Bottom of slab is clearly visable at 20cm in Depth.
Note the closely spaced rebar highlighted in the blue box.
High Resolution Antenna
Data shows drainage pipe marked with a red dot underneath a concrete slab reinforced with wire mesh. The dip in the wire mesh represents a thi8ckned slab-on-grade footing for a load bearing wall.
Accessories
Extension Pole
The extension pole for the StructureScan Mini XT and Mini LXT has a six-button remote operation to allow for easier scanning on walls and floors.
