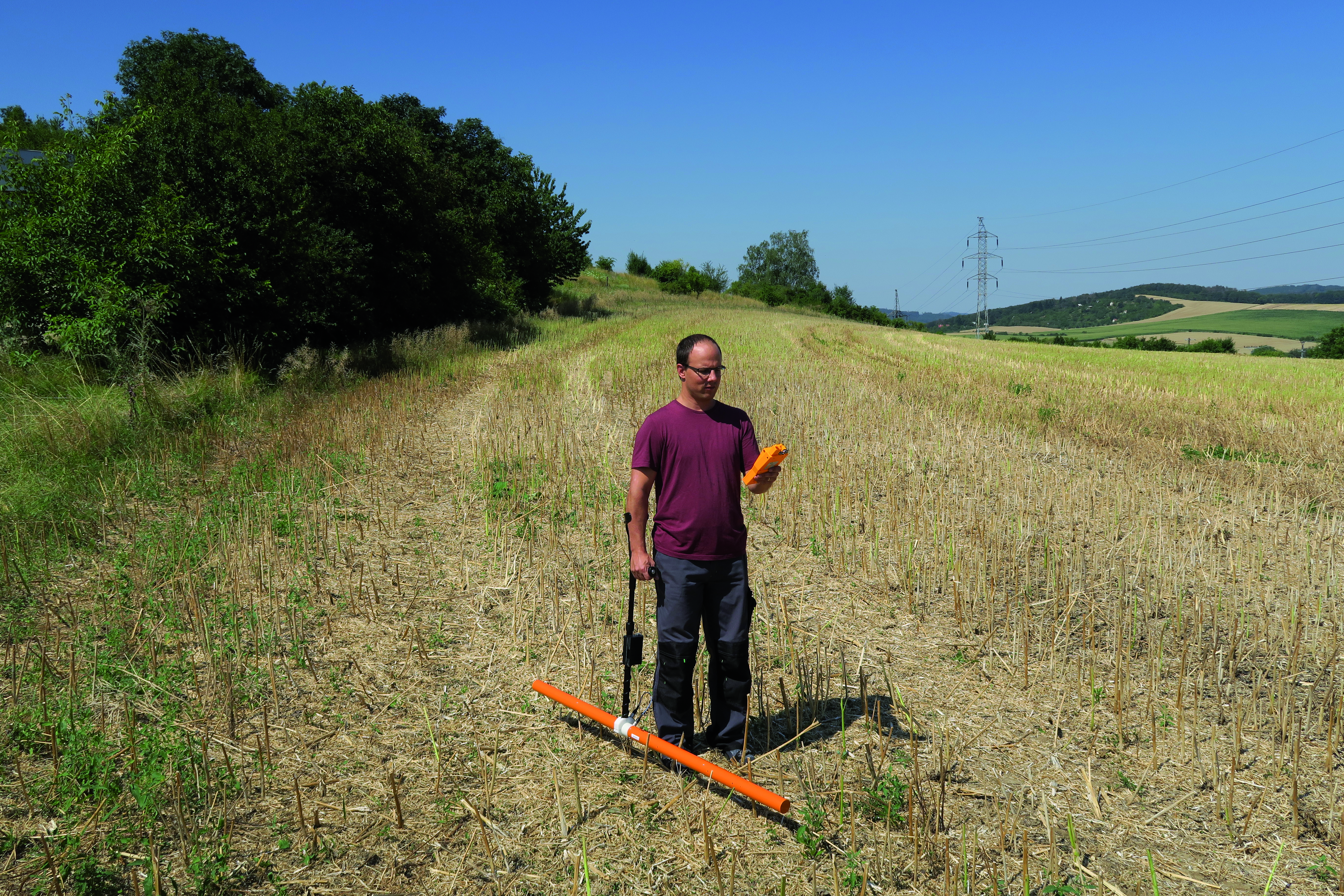

GF Instrument’s CMD Mini Explorer electromagnetic conductivity meter is designed for survey depth ranges from 0.3 to 1.6 m. The system uses a contactless method allowing fast measurements of conductivity and inphase under all field conditions (including very dry and icy ground). The Mini 6L probe is equipped with 6 receivers with excellent temperature stability. This way makes for high resolution depth graded mapping as well as imaging of sections possible and useful for wide range of walking and moving applications.
…with simultaneous 0.3 m, 0.5 m, 0.8 m, 1.1 m, 1.6 m, 2.3 m full depth ranges is designed for high resolution investigation of shallow layered structures in the frame of:
agriculture, forestry, archaeology, criminology, road inspection and civil engineering.
CMD-MiniExplorer 6L: SIX-depth probe
…with depth ranges:
0.3 / 0.15 m, 0.5 / 0.25 m, 0.8 / 0.4 m,1.1 / 0.5 m, 1.6 / 0.8 m, 2.3 / 1.1 m

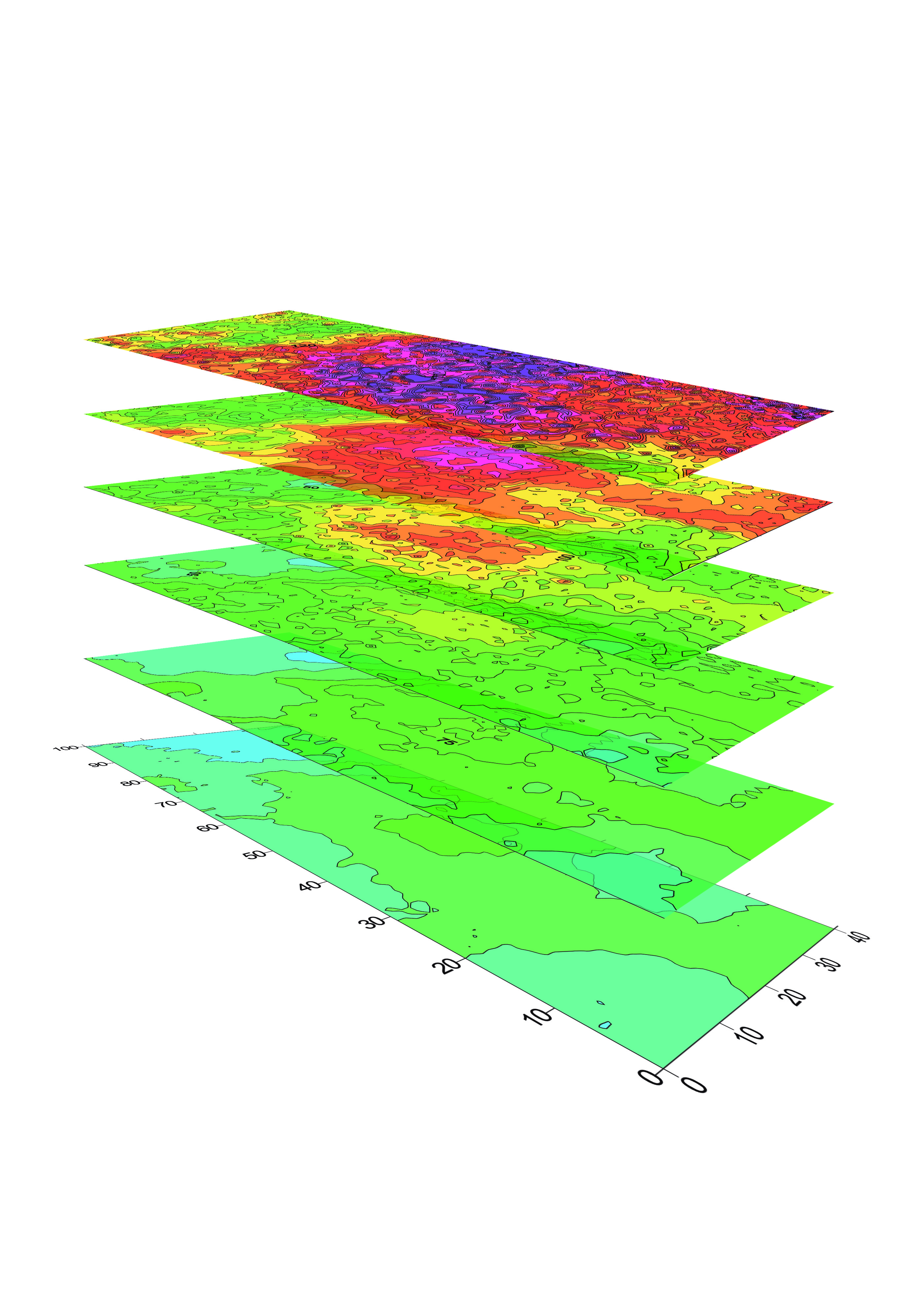

for high resolution mapping and section imaging.
