Description
3200 Multiple Low Frequency Antenna

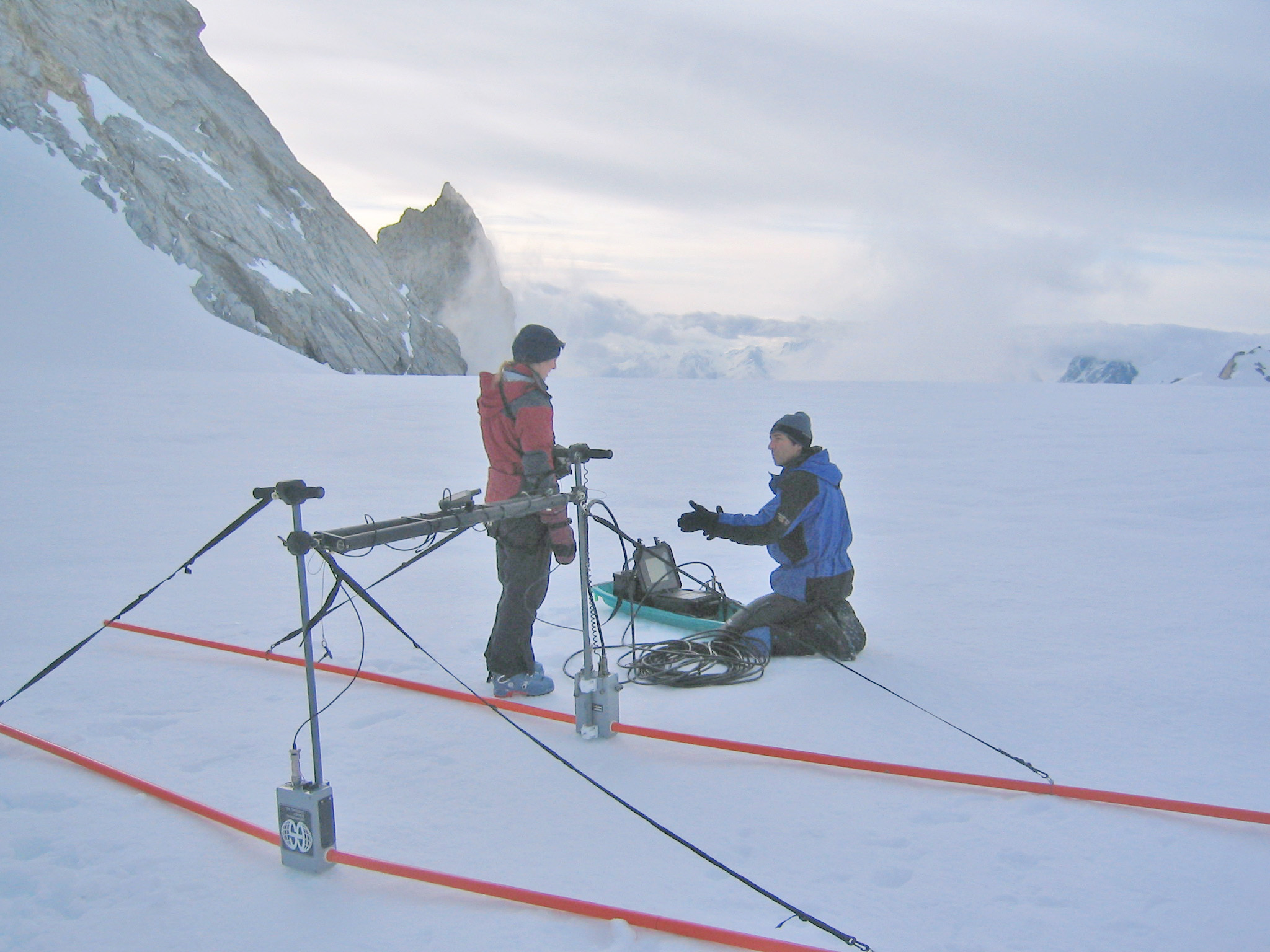

The multiple low-frequency antenna is designed for the deepest radar penetration possible. The antenna design consists of interchangeable elements; by changing the length of the antenna, you change the centre frequency. This antenna can be deployed in discrete measurements (stacking) or continuous profile data collection modes. This antenna is compatible with the SIR 4000.
Specifications
| Centre Frequency | 16-80 MHz adjustable |
| Depth Range | 0-50 m (0-150 ft) |
| Weight | 15-23 kg (33-50 lbs) |
| Dimensions | 120-600 cm in length (47-136 in) adjustable |
| Model | 3200 MLF |
This antenna is designed for applications requiring deep penetration and variable transmitter/ receiver geometry capability. The unique design allows the user to adjust the transmission frequency of the antenna. This feature gives the SIR System user greater flexibility when site or project conditions and requirements change. In addition, the variable transmitter/receiver geometry capability of the 3200 MLF enables the user to conduct Wide Angle Reflection and Refraction (WARR), Common Mid-Point (CMP) and trans-illumination investigations.
Major Features
- Environmentally sealed receiver and transmitter electronics
- Transmission frequency adjustable from 80 to 16 MHz (ground-coupled)
- Integral fibre-optic transmit trigger for reduced noise
- Light weight
- Operates in continuous or static (point collection) mode
- Adjustable carrying handle
System Includes:
(1) Model 3200 MLF Transmitter
(2) 5 m fibre-optic cable
(1) Model 3200 MLF Receiver
(2) 12 VDC batteries
(4) 60 cm antenna elements
(1) Battery charger
(4) Telescopic 120-240 cm antenna elements
(4) Adjustable antenna supports
(2) Antenna handles
